Compare Solar Cell Types and Technologies: Monocrystalline vs Polycrystalline vs Thin-Film

The choice of solar cell technology can significantly impact the efficiency and cost-effectiveness of solar energy systems. This article delves into the three primary types of solar cells: monocrystalline, polycrystalline, and thin-film. Readers will learn about the key differences, performance metrics, and material compositions that define each type. Understanding these distinctions is crucial for making informed decisions about solar energy investments. As the demand for renewable energy solutions grows, knowing which solar cell technology best suits specific needs becomes increasingly important. This guide will cover the differences between the solar cell types, their structural impacts on performance, material usage, efficiency comparisons, cost considerations, and environmental impacts.

What Are the Key Differences Between Monocrystalline, Polycrystalline, and Thin-Film Solar Cells?

Monocrystalline, polycrystalline, and thin-film solar cells each have unique characteristics that affect their performance and application. Monocrystalline solar cells are known for their high efficiency and longevity, typically offering efficiency rates of 15-22%. In contrast, polycrystalline solar cells are generally less efficient, with rates ranging from 13-16%, but they are often more affordable. Thin-film solar cells, while the least efficient at 10-12%, are lightweight and flexible, making them suitable for a variety of applications.

Solar Cell Type	Efficiency Rate	Cost	Lifespan
Monocrystalline	15-22%	Higher	25-30 years
Polycrystalline	13-16%	Moderate	20-25 years
Thin-Film	10-12%	Lower	10-20 years

This comparison highlights the trade-offs between efficiency, cost, and lifespan, guiding consumers in selecting the right solar technology for their needs.

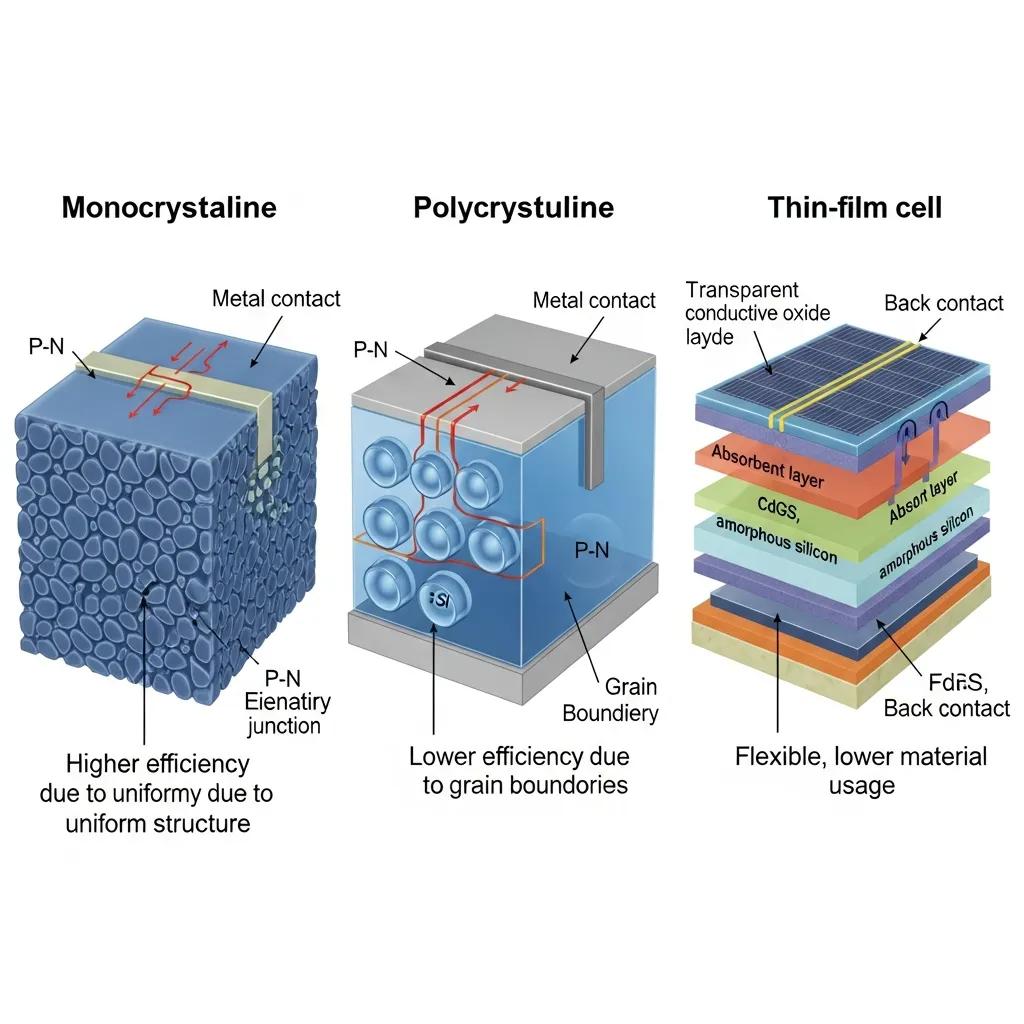

How Does the Structure of Each Solar Cell Type Affect Performance?

The structure of solar cells plays a critical role in their performance. Monocrystalline solar cells are made from a single crystal structure, allowing for better electron flow and higher efficiency. Polycrystalline cells, composed of multiple crystal structures, tend to have lower efficiency due to the boundaries between crystals that can impede electron movement. Thin-film solar cells utilize a different approach, layering materials such as cadmium telluride or copper indium gallium selenide, which allows for flexibility but sacrifices efficiency.

What Materials Are Used in Monocrystalline, Polycrystalline, and Thin-Film Cells?

The materials used in solar cells vary significantly among the three types. Monocrystalline cells are primarily made from high-purity silicon, which contributes to their efficiency and longevity. Polycrystalline cells also use silicon but in a less pure form, resulting in lower efficiency. Thin-film solar cells can be made from various materials, including:

Cadmium Telluride (CdTe): Commonly used in thin-film applications due to its low cost and ease of manufacturing.
Copper Indium Gallium Selenide (CIGS): Offers higher efficiency than CdTe and is used in flexible applications.
Amorphous Silicon (a-Si): A non-crystalline form of silicon used in some thin-film technologies.

Further research highlights the potential of Cadmium Telluride as a foundational material for efficient and cost-effective thin-film solar cells.

Cadmium Telluride: High-Efficiency, Low-Cost Thin-Film Solar Cells

Due to its basic optical, electronic, and chemical properties, CdTe can become the base material for high-efficiency, low-cost thin film solar cells using robust, high-throughput manufacturing techniques. CdTe films suited for photovoltaic energy conversion have been produced by nine different processes. Usingn-type CdS as a window-partner, solar cells of up to 16% efficiency have been made in the laboratory. Presently five industrial enterprises are striving to master low cost production processes and integrated modules have been delivered in sizes up to 60 × 120 cm2, showing efficiencies up to 9%. Stability, health, and environmental issues will not limit the commercial potential of the final product. The technology shows high promise for achieving cost levels of $0.5/Wpat 15% efficiency. In order to achieve this goal, scientists will have to develop a more detailed understanding of defect chemistry and device operation of cells, and engineers will have to develop methods for high-throughput manufacturing.

Cadmium-telluride—Material for thin film solar cells, 1998

Understanding these materials helps in evaluating the performance and environmental impact of each solar cell type.

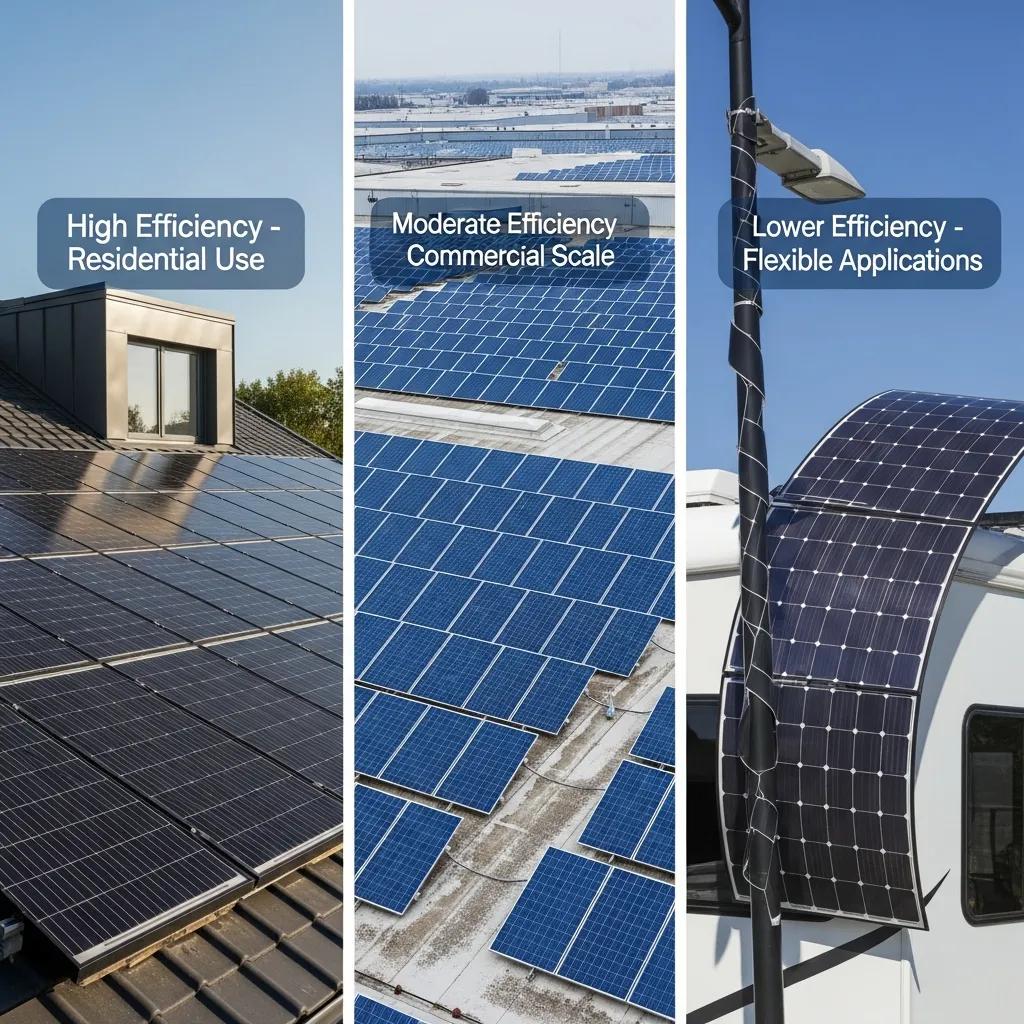

How Do Solar Panel Efficiency Rates Compare Among Different Solar Cell Technologies?

Efficiency rates are a crucial factor when comparing solar panel technologies. Monocrystalline panels lead the market with efficiency rates between 15-22%, making them ideal for space-constrained installations. Polycrystalline panels follow with rates of 13-16%, offering a balance between cost and performance. Thin-film panels, while the least efficient at 10-12%, are advantageous in specific applications where flexibility and weight are critical.

What Is the Typical Efficiency Range for Monocrystalline Solar Cells?

Monocrystalline solar cells typically achieve efficiency rates of 15-22%. This high efficiency is attributed to their single-crystal structure, which allows for optimal electron flow. Factors influencing their efficiency include temperature, shading, and the quality of the silicon used. As technology advances, the efficiency of monocrystalline cells continues to improve, making them a popular choice for residential and commercial solar installations.

Are Thin-Film Solar Panels Less Efficient Than Crystalline Types?

Yes, thin-film solar panels are generally less efficient than crystalline types. Their efficiency rates range from 10-12%, which is significantly lower than the 15-22% offered by monocrystalline panels and the 13-16% of polycrystalline panels. However, thin-film technology has advantages, such as lower production costs and the ability to be applied to flexible surfaces, making them suitable for specific applications where traditional panels may not be feasible.

What Are the Cost Differences and ROI Considerations for Each Solar Cell Type?

When considering solar cell types, cost and return on investment (ROI) are essential factors. Monocrystalline panels are typically the most expensive, with higher upfront costs but greater efficiency leading to better long-term savings. Polycrystalline panels offer a more affordable option with moderate efficiency, making them a popular choice for budget-conscious consumers. Thin-film panels are the least expensive, but their lower efficiency may result in longer payback periods.

How Does the Manufacturing Process Influence Solar Cell Cost?

The manufacturing process significantly impacts the cost of solar cells. Monocrystalline cells require a more complex and energy-intensive production process, contributing to their higher price. Polycrystalline cells are less expensive to produce due to simpler manufacturing techniques, while thin-film cells benefit from lower material costs and faster production times. Understanding these processes helps consumers evaluate the cost-effectiveness of each solar technology.

What Is the Expected Lifespan and Degradation Rate of Each Solar Cell Type?

The lifespan and degradation rates of solar cells vary by type. Monocrystalline solar cells typically last 25-30 years with a degradation rate of about 0.5% per year. Polycrystalline cells have a lifespan of 20-25 years, with a similar degradation rate. Thin-film cells generally last 10-20 years, with a higher degradation rate of around 1-2% per year. These factors are crucial for consumers to consider when investing in solar technology.

A study on monocrystalline silicon PV modules operating for over two decades provides detailed insights into their degradation patterns.

Monocrystalline Solar Module Degradation & Performance Metrics

This paper investigates the degradation of 24 mono-crystalline silicon PV modules mounted on the rooftop of Egypt’s electronics research institute (ERI) after 25 years of outdoor operation. Degradation rates were determined using the module’s performance ratio, temperature losses, and energy yield. The results demonstrate that the modules’ maximum power (${P}_{max}$) has decreased in an average manner by 23.3% over time. The degradation rates of short-circuit current (${I}_{sc}$) and maximum current (${I}_{m}$) are 12.16% and 7.2%, respectively. The open-circuit voltage (${V}_{oc}$), maximum voltage (${V}_{m}$), and fill factor ($FF$) degradation rates are 2.28%, 12.16%, and 15.3%, respectively.

Degradation and energy performance evaluation of mono-crystalline photovoltaic modules in Egypt, AA Hassan, 2023

What Are the Advantages and Limitations of Monocrystalline Solar Cells?

Monocrystalline solar cells offer several advantages, including:

High Efficiency: They provide the highest efficiency rates among solar technologies, making them ideal for limited space.
Longevity: With a lifespan of 25-30 years, they offer a long-term energy solution.
Aesthetic Appeal: Their uniform black color and sleek design are often preferred for residential installations.

However, they also have limitations:

Higher Cost: The production process is more expensive, leading to higher upfront costs.
Performance in High Temperatures: Their efficiency can decrease in high-temperature conditions.

Why Are Monocrystalline Cells Preferred for High-Efficiency Applications?

Monocrystalline cells are preferred for high-efficiency applications due to their superior performance and longevity. Their ability to generate more power per square foot makes them ideal for residential rooftops and commercial installations where space is limited. Additionally, advancements in technology continue to enhance their efficiency, making them a reliable choice for those seeking maximum energy output.

What Are the Cost and Environmental Impact Considerations?

The cost and environmental impact of solar cell production are critical considerations. Monocrystalline cells, while efficient, have a higher environmental footprint due to the energy-intensive manufacturing process. Polycrystalline cells offer a more balanced approach, with moderate costs and environmental impacts. Thin-film cells, although less efficient, have a lower production cost and environmental impact, making them an attractive option for sustainable energy solutions.

How Are Thin-Film Solar Cells Applied in Modern Solar Technologies?

Thin-film solar cells are increasingly used in modern solar technologies due to their versatility. They can be integrated into building materials, such as solar shingles and windows, allowing for aesthetic and functional applications. Their lightweight nature makes them suitable for portable solar solutions and applications in unconventional spaces, expanding the potential for solar energy utilization.

What Types of Thin-Film Technologies Are Currently Used?

Several thin-film technologies are currently in use, including:

Cadmium Telluride (CdTe): Widely used for its cost-effectiveness and efficiency in large-scale solar farms.
Copper Indium Gallium Selenide (CIGS): Known for its high efficiency and flexibility, making it suitable for various applications.
Amorphous Silicon (a-Si): Often used in small-scale applications and consumer electronics due to its lightweight and flexible properties.

These technologies continue to evolve, offering innovative solutions for solar energy generation.

What Are the Benefits of Flexible and Building-Integrated Photovoltaics?

Flexible and building-integrated photovoltaics (BIPV) offer several benefits:

Aesthetic Integration: They can be seamlessly integrated into building designs, enhancing visual appeal.
Space Efficiency: Flexible panels can be installed in areas where traditional panels may not fit.
Versatility: They can be used in various applications, from residential rooftops to commercial buildings.

These advantages make flexible and BIPV technologies an attractive option for modern solar energy solutions.

How Do Environmental Factors and Regional Climate Affect Solar Cell Performance?

Environmental factors and regional climate significantly influence solar cell performance. Temperature, shading, and humidity can all impact efficiency. For instance, monocrystalline cells perform well in high temperatures, while thin-film cells may struggle. Understanding these factors helps consumers select the most suitable solar technology for their specific climate conditions.

Which Solar Cell Types Perform Best in Different Climates?

Different solar cell types excel in various climates:

Monocrystalline: Best for sunny, hot climates due to their high efficiency and performance.
Polycrystalline: Suitable for moderate climates where cost-effectiveness is a priority.
Thin-Film: Ideal for cooler, cloudy regions where flexibility and lightweight properties are advantageous.

Choosing the right solar technology based on climate can optimize energy production and system performance.

How Does Temperature and Shading Impact Efficiency and Lifespan?

Temperature and shading are critical factors affecting solar cell efficiency and lifespan. High temperatures can reduce the efficiency of solar panels, particularly monocrystalline types, while shading can significantly decrease energy output across all types. Understanding these impacts is essential for optimizing solar energy systems and ensuring long-term performance.
